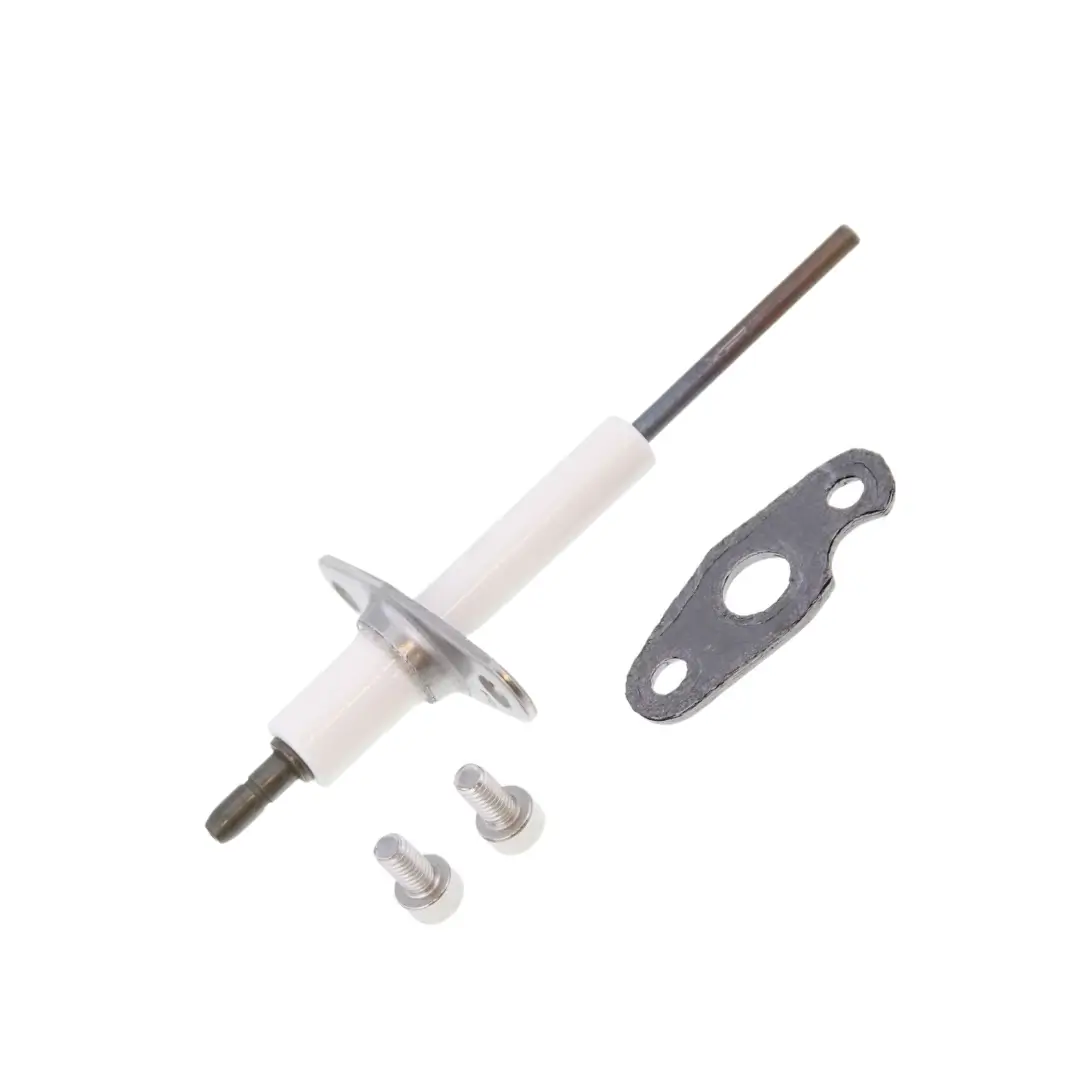

Ideal  Logic Flame Detection Electrode 175592

This ideal logic detection electrode senses the burner flame and confirms safe ignition in your Ideal boiler. If it’s worn, dirty, or cracked, the boiler may spark but not stay lit, lock out, or lose heating and hot water intermittently. Replacing the correct 175592 electrode restores reliable flame detection, helps reduce nuisance shutdowns, and gets the boiler running smoothly again. Always match the part number and model before ordering.

Compatibility :

• Combi: 24, 30
• Combi C: 24, 30, 35
• Combi E: 24, 30, 35
• Combi ES: 24, 30, 35
• Combi ESP: 24, 30, 35
• Code Combi ES: 26, 33, 38
• Code Combi ESP1: 26, 33, 38
• Esprit Eco: 24, 30
• Exclusive Combi: 24, 30, 35
• i: 24, 30, 35
• I Mini: 24, 30
• I Mini C: 24, 30
• Independent: C24, C30, C35
• Independent Combi: 24, 30, 35
• Instinct Combi: 24, 30, 35
• Logic Combi: 24, 30, 35
• Logic Combi C IE: C24IE, C30IE, C35IE
• Logic Code Combi: 26, 33, 38
• Logic + Combi: 24, 30, 35
• Logic + Combi C: C24, C30, C35
• Logic Heat: 12, 15, 18, 24, 30
• Logic Heat H: 12, 15, 18, 24, 30
• Logic Heat H IE: 12IE, 15IE, 18IE, 24IE, 30IE
• Logic + Heat: 12, 15, 18, 24, 30
• Logic + Heat H: 12, 15, 18, 24, 30
• Logic System: 15, 18, 24, 30
• Logic System S IE: S15IE, S18IE, S24IE, S30IE
• Logic + System: 15, 18, 24, 30
• Logic + System (S range): S15, S18, S24, S30
• MAX Combi C: C24, C30, C35
• MAX Heat H: 12, 15, 18, 24, 30
• MAX System S: 15, 18, 24, 30
• Procombi Exclusive: 24, 30, 35
• System: 15, 18, 24, 30
• System IE: 15IE, 18IE, 24IE, 30IE
• System S: 15, 18, 24, 30
• Ultra Combi: 30, 35
• Ultra + Combi: 30, 35
• Ultra System: 15, 18, 24, 30
• Ultra + System: 15, 18, 24, 30
• Morco GB24: Series 1, Series 11
• Morco GB30: Series 1, Series 11
• Keston: C30 Combi, C35 Combi, Combi 30, Combi 35, System 30, System S 30

Important fitting advice

We recommend that all parts are fitted by a fully qualified Gas Safe registered engineer. If you need help confirming the right part, contact us our team has 10+ years of boiler spares knowledge and friendly chat support to help you quickly.

Delivery

At Boiler Spares Hub, we dispatch orders within 1 working day (Monday-Friday). Orders placed outside working days will be dispatched on the next working day. For delivery options available for this product, please add it to your basket or check our delivery options page.

Returns

We accept 30-day returns. Returns must be in an unopened, sealed box. If we find the item has been used or installation was attempted, we may refuse the return.

Frequently Asked Questions (FAQs)

1. What does a detection electrode do?
It senses the burner flame and tells the boiler the flame is present, so it can keep running safely.

2. What symptoms mean the detection electrode is faulty?
Boiler tries to light then shuts off, ignition lockout, intermittent heating/hot water, repeated sparking/clicking, or flame failure errors.

3. Will a dirty electrode cause problems?
Yes. Soot/oxidation can stop proper flame sensing and cause nuisance lockouts. If cleaning doesn’t help, replace it.

4. How do I confirm this part fits my boiler?
Match Ideal part number 175592 and confirm your boiler model/GC number from the data badge or manual before ordering.

5. Do I need a Gas Safe engineer to replace it?
If replacement requires opening the sealed combustion chamber or working on gas-related components, use a Gas Safe registered engineer.
